Discover More with the New Analog Discovery 3

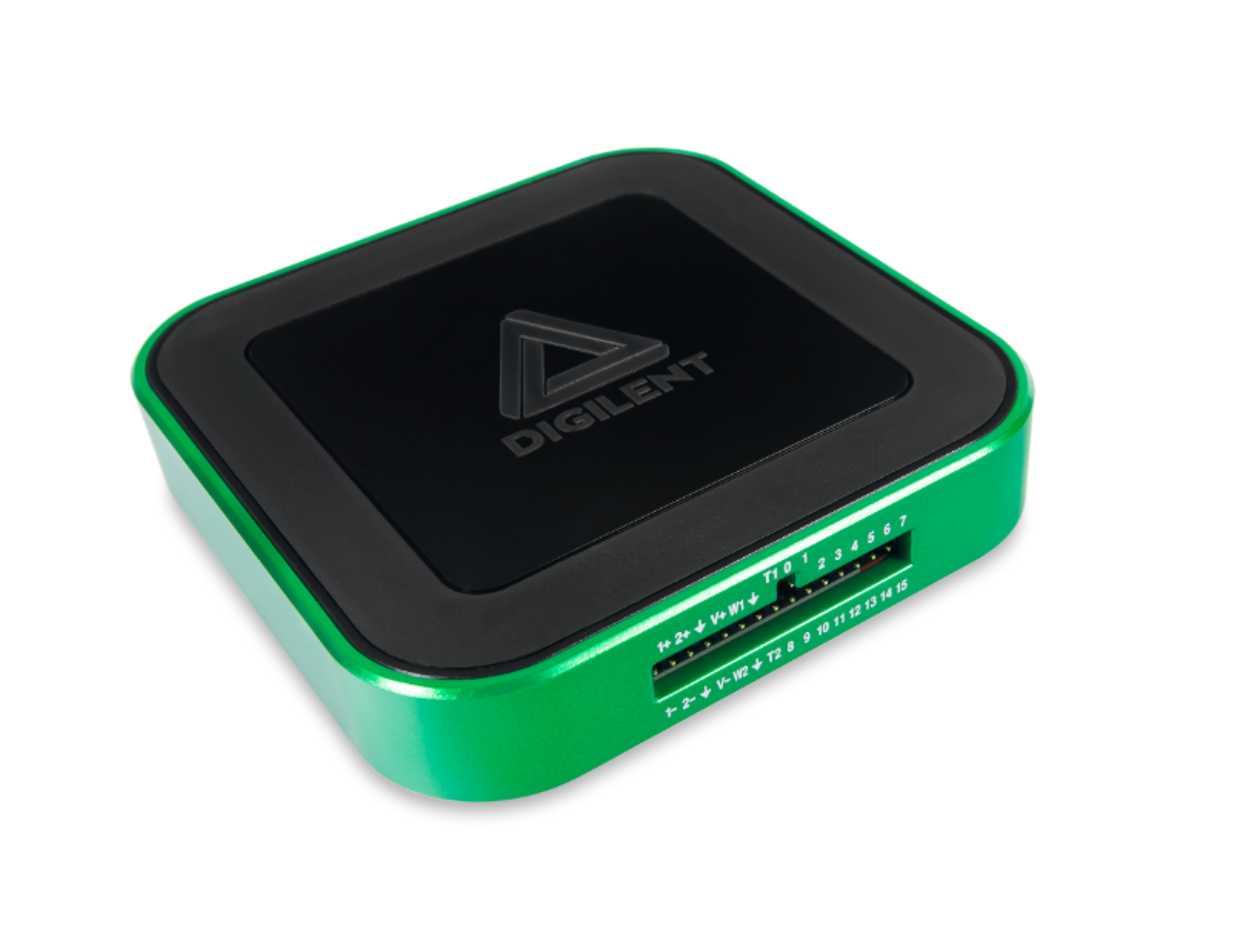

Digilent’s latest multi-function test and measurement device, also known as the AD3, is a digital oscilloscope, logic analyzer, waveform generator, pattern generator, and much more. Using the flexible WaveForms software (supported by Windows, Mac, and Linux), the Analog Discovery 3 can be used in the lab, in the field, or even at home - you're no longer tied down to a traditional benchtop and stacks of expensive test instruments.

Portability

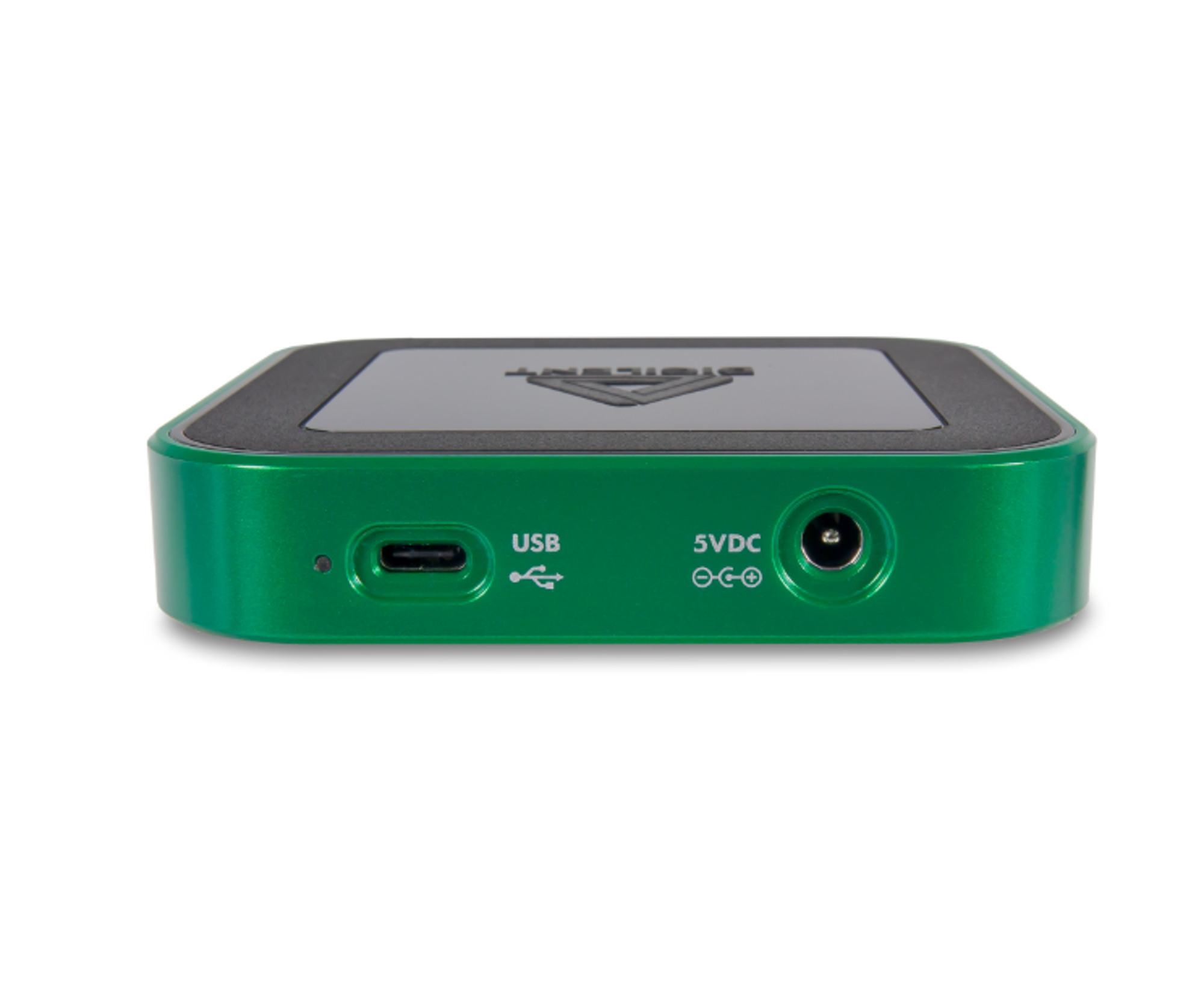

Like its predecessor, the Analog Discovery 3 is a portable USB-powered test and measurement device, though it now features an upgraded USB-C® connection. It’s lightweight and small enough to fit in your pocket or backpack, so it becomes an exceptional companion for any engineer.

Expanded WaveForms Features

The Analog Discovery 3 boasts a larger-than-ever buffer size, allowing more data to be sent through the waveform generator and received through the mixed signal (analog and digital) oscilloscope. It also has an increased sampling rate of up to 125 MS/s on all channels and a more potent power supply (up to 800 mA). The larger buffers allow you to capture longer records at high resolution and enable more complex AWG signals. Modulated AWG signals also take advantage of larger buffers, and more complex modulated signals have been added including phase modulation and summation.

This iteration of our most popular Analog Discovery digital oscilloscope also allows engineers access to new powerful features in WaveForms like the FIR (finite impulse response) Filter. Through the use of optional FIR filters on Oscilloscope input channels, users can reduce the amount of high frequency noise that could affect the quality of their measurements. Digital loopback of captured signals to the AWG, both filtered and unfiltered, is now supported. AWG output signals can now also be recaptured through digital loopback and displayed alongside signals returned from a circuit under test.

The AD3 is built on the next generation AMD FPGA, opening up even more features and future enhancements over time with software updates.

Accessories

The Analog Discovery 3 has access to all of the adapters and accessories from its previous version, as well as the new Audio Adapter.These accessories, like the Transistor Tester, Impedance Analyzer, and Breadboard Adapter, are available to buy from our online store.

If you’re looking to buy an oscilloscope, the AD3 is a digital oscilloscope option that is a complete solution, meaning that you won’t have to shop for more benchtop equipment.

The Analog Discovery 3 is proudly manufactured using Texas Instruments components.
